Technical breakdown of sensor types and their suitability for commercial applications
Introduction: Why Sensor Choice Matters in Commercial Restrooms
Touchless technology isn’t just a nice thing to have in busy bathrooms like those in airports, hospitals, universities, and shopping malls; it’s a must-have. The sensor in a faucet or soap dispenser controls how quickly and accurately it responds, how often it misfires, and how much upkeep it needs.
But most people who specify still think of “sensor” as a general term. The truth is that infrared (IR), time-of-flight (ToF), and microwave/radar sensors act very differently when the light, reflections, clothes colors, or mirror finishes in modern bathrooms change.
This article goes into detail about each sensing method, how it works, and how they stack up against each other using real-world data from brands like FontanaShowers, BathSelect, Sloan, and TOTO, whose commercial faucet lines use these technologies.
1. Infrared (IR) Sensors—The Standard in the Business
How It Works
Infrared sensors send out a narrow beam of light (usually near-infrared) from an emitter that is close to the faucet spout. When a hand or object blocks the beam, the light that is reflected back to a photodiode receiver tells the water to turn on.
Advantages
Cost-effective and well-known: IR is the most popular choice for commercial restrooms because it has been used in the field for over 25 years. Small sensor modules fit easily into spouts and soap dispensers.
Adjustable sensitivity: Companies like FontanaShowers and BathSelect let you change the detection ranges (usually 5–15 cm) and the run-time settings for each basin depth.
Energy-efficient: Consumes very little power and so is the best choice for battery-powered systems (capable of running up to two years on four AA batteries).
Limitations
Chrome-countertop surfaces, reflective sinks, and mirrored walls are other potential sources of false mirrors.
Interference from ambient light: Skylight or halogen lights that allow lots of sunlight can saturate the receiver.
Clothing color variability: The dark sleeves or gloves could absorb the IR radiation rather than reflecting it; hence, the need to recalibrate.
Best Use
IR sensors are still the best choice for controlled environments like offices, universities, and places with low glare where the light is stable and the number of fixtures is moderate.
2. Time-of-Flight (ToF) Sensors: The New Standard for Accuracy
How It Works
Time-of-Flight involves the transmission of a pulse of a laser or LED and the calculation of the time of flight of the reflected light. ToF sensors can tell precisely how far away something is rather than simply whether it is there or not.
This means that ToF doesn’t depend as much on the color or reflection of the surface; they measure depth, not brightness.
Advantages
ToF sensors, like those in FontanaShowers’ ToF series and BathSelect’s advanced sensor line, are very accurate in a wide range of settings. They can still detect things even in polished or dark spaces.
Adaptive depth sensing makes this kind of setup great for more than one sink: It knows precisely where the user’s hand is to stop other users from accidentally triggering it.
Low false positives: ToF algorithms can tell the difference between human hands and water flow or paper towels by looking at reflectance profiles.
Stable when the sun and other lights change: Works in open concourses or airport terminals with a lot of glass.
Limitations
Cost and complexity: ToF modules cost 30–40% more than regular IR, which makes the price of the fixture go up.
Power use: If not optimized, more data processing can shorten battery life.
Limited vendors: Only high-end brands like FontanaShowers and a few Sloan airport-grade models offer ToF-based units in large quantities.
Best Use
Perfect for airports, hospitals, or malls—places where the lighting is unpredictable and many people use the same space at the same time, where precision and cleanliness are more important than cost.
3. Microwave / Radar Sensors – Long-Range & All-Weather Detection
Here’s how they work:
The microwave/Doppler radar sensor emits low electromagnetic waves. The doppler effect that relates to the frequency variation indicates the reflection of the electromagnetic wave from the moving object, such as the hand in this case.
Radar doesn’t rely on reflection like IR or ToF cameras. Instead, it uses radio waves to find changes in motion and distance.
Pros
Insensitive to light or surface reflections: Not affected by light or surface reflections: works perfectly under glass, mirrors, or metal.
Penetrates thin materials: Can be mounted behind panels or walls, which lets you hide faucet sensors or flush valves completely.
Wide coverage area: This device can pick up movement within 10 to 30 cm, making it perfect for flush valves, urinals, or soap dispensers where people move around in different ways.
Quick to turn on: Most commercial modules respond in less than 0.1 seconds.
Limitations
Too sensitive without tuning: It can go off when people walk by or when cleaning staff come by; it needs shielding or fine-tuning.
Power-hungry: Microwaves require constant power; therefore, they function better in AC power settings.
Interference potential: Occasionally, it may impact readings if there is any wireless or RF device around.
Best Use
This is why Radar/Microwave is best for busy public toilets, like those found in airports or train stations where lighting and reflections change a lot, and durability is more precious than energy saving.
Brand Implementations and Innovation Trends
FontanaShowers – Adaptive ToF Precision
FontanaShowers was one of the first companies to use ToF sensing in commercial faucets, especially for airports and healthcare settings. Their systems have programmable sensing range, self-adjusting calibration (for marble or stainless steel counters), and two power options (battery and AC). The ToF sensors also make sure that the response is always the same, even when the sunlight changes, which is one of the biggest problems with IR.
BathSelect: A Hybrid Design with Multiple Sensors
BathSelect uses dual-sensor logic (IR + ToF) to reduce false triggers and make it easier to tell when someone is holding something. Their hybrid faucet series uses dual-band feedback to make sure that a person is moving before water is released. This is important in bathrooms where HVAC airflow or cleaning mops could set off standard sensors.
BathSelect also combines smart-flush and soap dispenser synchronization, so the whole wash station works without the user having to touch it.
Sloan & Kohler: Combining Radar and Optical
Sloan’s commercial flushometers and faucet systems often use microwave radar to find movement through walls, which keeps sensor windows from being damaged. Kohler Insight faucets use both infrared and learning algorithms. For example, adaptive IR changes gain based on how much light there is.
This shows that the whole industry is moving toward sensor fusion, which combines multiple signals (IR + ToF or IR + radar) to get almost no false activation rates.

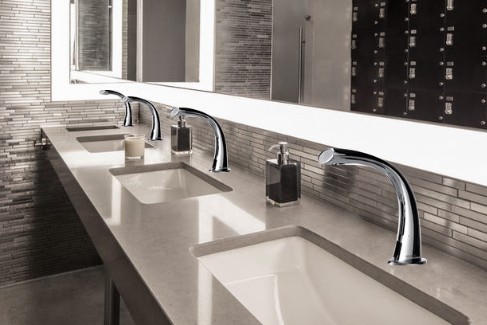

6. Suitability for High-Traffic Restrooms
Airport & Transit Hubs
- ToF or Microwave works best because it is stable in different types of light, lasts a long time, and is fast.
- IR is only useful if the lighting and reflective surfaces are well-controlled.
Hospitals and clinics
- ToF sensors make sure that detection is accurate near wash stations, which reduces cross-contamination.
- ToF’s distance calibration makes sure that hands are in the right place for a clean rinse.
Universities, Schools, Officess
- IR sensors are still a good value and dependable, especially when the throughput is moderate and the light is stable.
Outdoor or Public Parks
- Microwave technology is the best because it works well in open areas like rest stops and service stations, no matter what the weather is like.
Future Directions: Smart Analytics and Multi-Modal Fusion
Next-generation systems are moving toward combining data from multiple sensors and analyzing it:
- Self-learning algorithms can automatically change the detection thresholds based on feedback in real time.
- Some Fontana and Sloan lines now have IoT-enabled modules that send usage counts and fault codes for predictive maintenance.
- AI-calibrated basins may one day be able to change the flow duration based on how people use them, how busy the area is, or how much water they want to save.
These data points turn restrooms into measurable performance assets for airports that handle more than 10 million passengers a year. They can predict when batteries need to be replaced, find leaks, and cut down on downtime.
In conclusion, don’t follow trends; match technology to the job.
When you ask for a “sensor faucet” next time, ask what kind of sensor.
- IR is cheap and easy to use.
- ToF gives accuracy, stability, and cleanliness in places where there is a lot of reflection and use.
- Microwave guarantees unmatched strength and hidden installation options.
